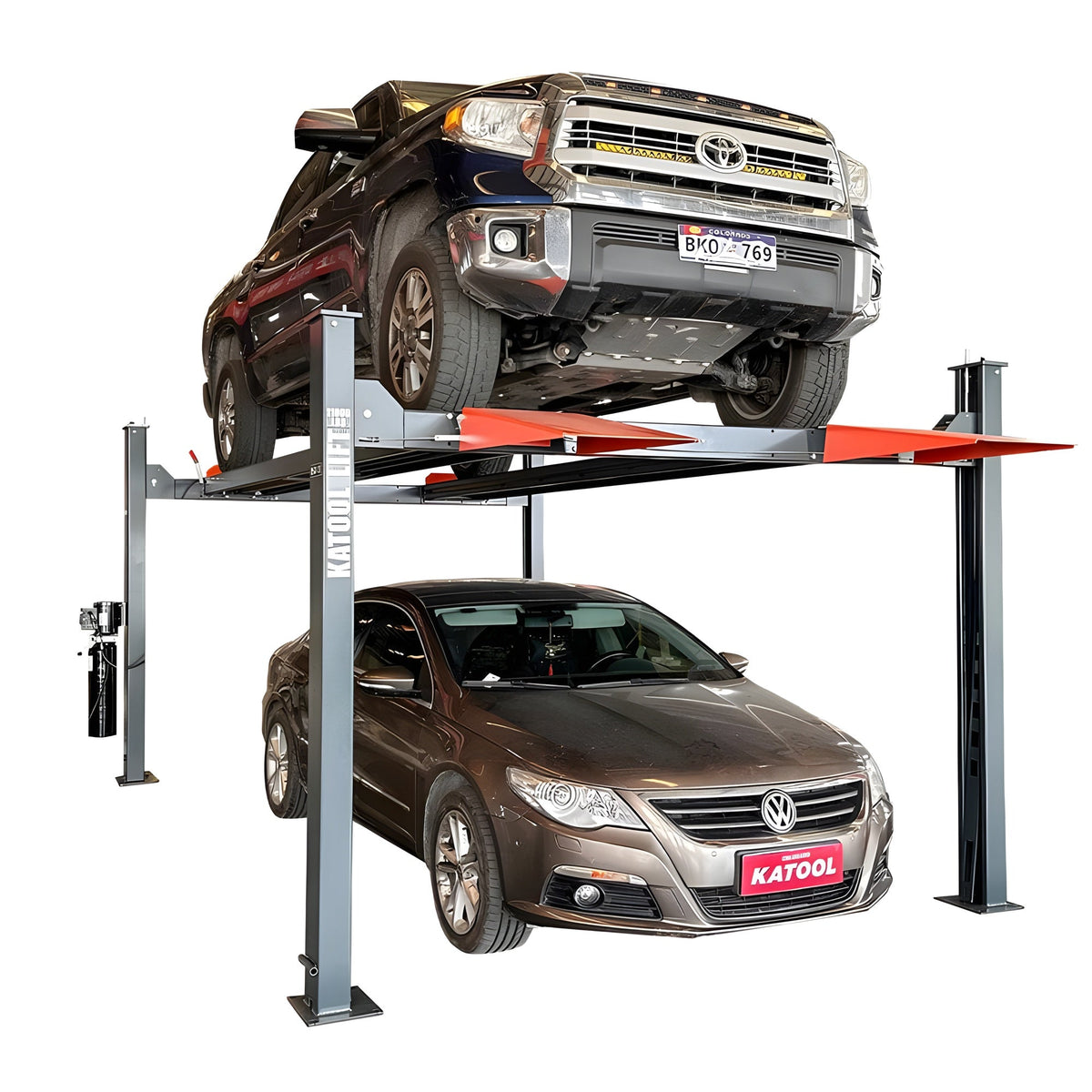

Katool KT-4H110 11,000 lb Four-Post Lift - Service and Storage
An 11,000 lb four-post lift built for service work and two-vehicle storage. 14 locking positions, heavy 6.8 by 4.7 inch steel posts, non-skid diamond-plate runways, and a power unit that runs on a standard 110V outlet or 220V single-phase.
- 11,000 lb (4,990 kg) lifting capacity
- 14 mechanical locking positions
- Slack-cable safety at each column
- Non-skid diamond-plate runways
- Runs on 110V or 220V single-phase
- Drip trays and jack tray included
The numbers that matter
Heavy steel. Standard outlet. Zero excuses.
Six reasons home garages and small shops pick the KT-4H110 for service and storage.
Runs on a standard outlet
The 110V model plugs into an ordinary garage receptacle - no electrician, no panel upgrade. Want faster lifting? The 220V single-phase model is one click away.
Doubles your garage
Park a project car up top and keep a daily driver underneath. A four-post storage lift is the cheapest square footage you will ever buy.
14 locking positions
Mechanical locks engage every 4.7 inches with a slack-cable safety device at each column. The platform is held by steel, not hydraulics, at working height.
Heavy steel structure
6.8 by 4.7 inch posts and diamond-plate runways carry the full 11,000 lb capacity, tested to 115% dynamic and 150% static load.
Service-ready
Drive-on runways, included drip trays and a jack tray let you lift the wheels for brake, tire and suspension work.
Free freight, fully crated
Ships free by LTL freight from five U.S. warehouses, curbside to the contiguous 48 states, brand new and crated.
Real work, real garages.
Two vehicles, one bay
Raise the platform to store a second vehicle underneath and reclaim your garage floor - the number-one reason owners buy a four-post lift.

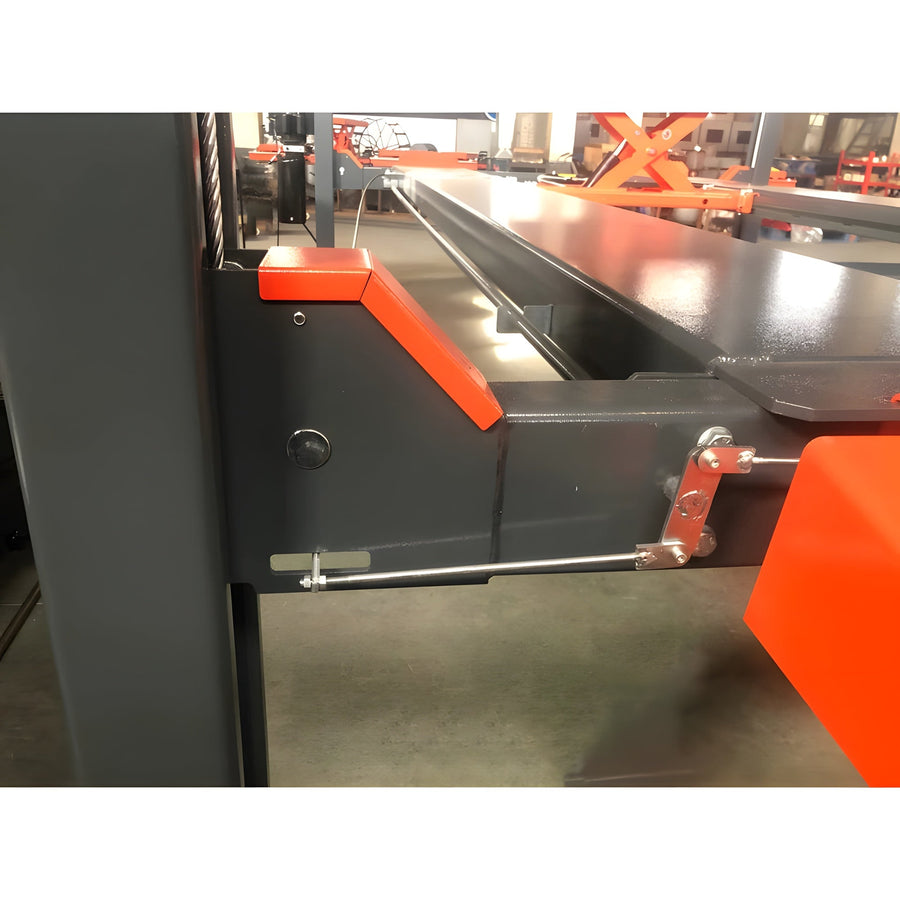

14 locks and slack-cable backup
Mechanical locks every 4.7 inches with a slack-cable safety device at each column hold the platform on steel at any working height.

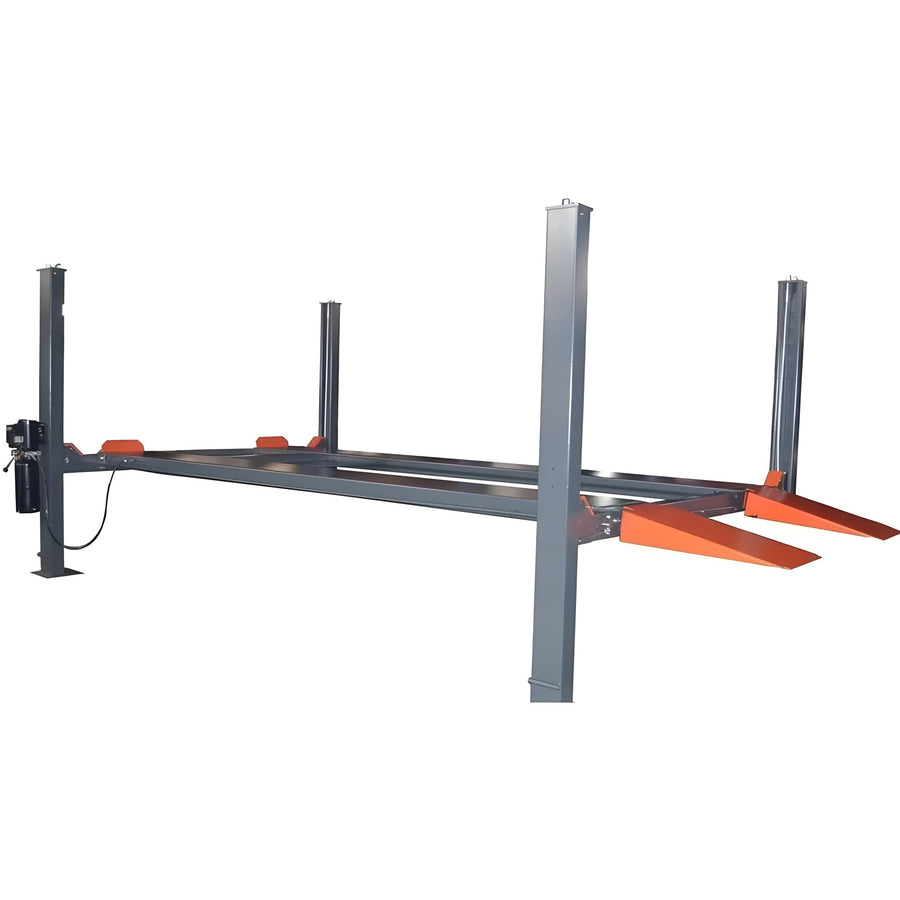

Diamond-plate drive-on runways
Non-skid steel runways with included drip trays and a jack tray give you a stable, wheels-free platform for undercarriage work.
Specifications and what is included
The Katool KT-4H110 is an 11,000 lb (4,990 kg) four-post lift built for both service work and long-term vehicle storage. Drive up the ramps, raise the platform to any of 14 locking positions, and you have a rock-solid platform for oil changes, brake jobs, exhaust and undercarriage work - or the height to park a second vehicle underneath and double your garage floor space. It runs on a standard household circuit: choose the 110V model to plug into an ordinary garage outlet, or the 220V model for a faster single-phase lift.
Heavy 6.8" x 4.7" steel posts, non-skid diamond-plate runways, dual redundant mechanical locks with a slack-cable safety device at every column, and a single-point manual lock release make this a lift you can trust to hold your vehicle for a five-minute check or five months of storage. It is CE approved and tested to 115% dynamic and 150% static load. Brand new, crated, and delivered free by LTL freight to the contiguous 48 states.
What your order includes
- Katool KT-4H110 four-post lift: four posts, two runways, cross rails and drive-on ramps
- Hydraulic power unit (110VAC or 220VAC, 60Hz, single phase - matching the variant you select)
- Single hydraulic cylinder with equalized cable lifting system
- 14-position mechanical safety locks with slack-cable safety at each column
- Single-point manual lock release
- Two drip trays plus a jack tray for wheels-free service
- Non-skid diamond-plate steel runways
- Full hardware pack and assembly / operation manual
Six reasons this lift wins
- Runs on a standard outlet. The 110V model plugs into an ordinary garage receptacle - no electrician, no panel upgrade. Prefer faster lifting? The 220V single-phase model is one click away.
- Doubles your garage. Park one vehicle up top and keep a daily driver underneath. A four-post storage lift is the cheapest square footage you will ever buy.
- 14 locking positions. Mechanical locks engage every 4.7" with a slack-cable safety device at each column - the platform is held by steel, not hydraulics, at working height.
- Heavy steel structure. 6.8" x 4.7" posts and diamond-plate runways carry the full 11,000 lb capacity, tested to 115% dynamic and 150% static load.
- Service-ready. Drive-on runways, included drip trays and a jack tray let you lift the wheels for brake, tire and suspension work.
- Free freight, fully crated. Ships free by LTL freight from five U.S. warehouses, curbside to the contiguous 48 states.
In the garage
- Home and enthusiast garages - store a project car or seasonal vehicle above the daily driver.
- General service and maintenance - oil changes, brakes, exhaust, fluids and undercarriage inspection at a comfortable height.
- Small independent shops - a durable, high-capacity lift for cars, trucks and vans up to 11,000 lb.
- Fleet and hobby storage - stack vehicles two-high to reclaim floor space in a tight building.
Specifications
| Capacity and structure | |
|---|---|
| Lifting capacity | 11,000 lbs (4,990 kg) |
| Post structure | 6.8" x 4.7" steel posts |
| Runways | Non-skid diamond-plate steel |
| Load testing | 115% dynamic / 150% static, CE approved |
| Dimensions | |
| Max lifting height | 84.25" (2,140 mm) |
| Post height | 94.88" (2,410 mm) |
| Overall width | 126" (3,200 mm) |
| Overall length with ramps | 229.73" (5,835 mm) |
| Width inside columns | 112.81" (2,865 mm) |
| Width between runways | 45.3" |
| Minimum runway height | 6.2" (157 mm) |
| Locks and safety | |
| Locking positions | 14, every 4.7" |
| Safety devices | Slack-cable safety at each column, single-point manual lock release |
| Power and hydraulics | |
| Motor | 110VAC/60Hz/1PH or 220VAC/60Hz/1PH (by selected variant) |
| Hydraulic oil | AW-46 (AW-32 for cold climates) |
| Weight and shipping | |
| Net weight | 2,116 lbs (960 kg) |
| Shipping weight | 2,119 lbs |
| Shipping dimensions | 195" x 26" x 32" |
| Ships from | Five U.S. warehouses |
Installation note: requires a minimum 4" thick concrete floor rated at 3,000 PSI. The comparison chart, feature photos and accessory images above show the runways, locks, power unit and included drip / jack trays in detail.
What's in the crate, and how it gets to you
In the crate
- 1 x Katool KT-4H110 four-post lift (four posts, two runways, cross rails, drive-on ramps)
- 1 x hydraulic power unit (110VAC or 220VAC single phase, matching your variant)
- 1 x single hydraulic cylinder with equalized cable lifting system
- 14-position mechanical safety locks with slack-cable safety at each column
- 1 x single-point manual lock release
- 2 x drip trays and 1 x jack tray
- Non-skid diamond-plate steel runways
- Full hardware pack and assembly / operation manual
Shipping
Your lift ships fully crated on a pallet by LTL freight. The carrier calls ahead to book a curbside delivery appointment. Freight is on us - you uncrate, assemble on a suitable concrete floor and get to work.
Shipping, returns and warranty
Shipping and delivery
Returns
Warranty and support
Payment options
What do I need to install it?
How do I track my order?
What owners say about this lift
"Delivery was curbside and the freight was crated tight. Assembly took an afternoon on my garage slab. The 110V model runs off my regular outlet and lifts my truck without a hitch."
"Bought it to store my project car above the daily driver. The locks are solid and I feel completely safe walking under it. Best money I have spent on the shop this year."
"We run a small independent shop and needed a reliable four-post for service and alignments. Heavy steel, smooth power unit, and the jack tray makes wheels-free work easy."
"The 220V option lifts noticeably faster. Diamond-plate runways are grippy and the single-point release drops all four locks together. Freight showed up in the window they gave me."
"Solid value for an 11,000 lb lift. It handles my crew-cab easily with room to spare, and the drip trays keep the car below clean during oil changes."
"Assembly instructions were clear and the hardware pack was complete. Support answered my voltage question quickly by email. Rock solid at full height."
Owner feedback collected by American AutoGear. Names shortened at the owner's request.
$1,459.99 today instead of $3,899.00
Free freight, a 12-month parts warranty, a 3-year structural warranty and a support line that picks up. Limited stock at this price.
